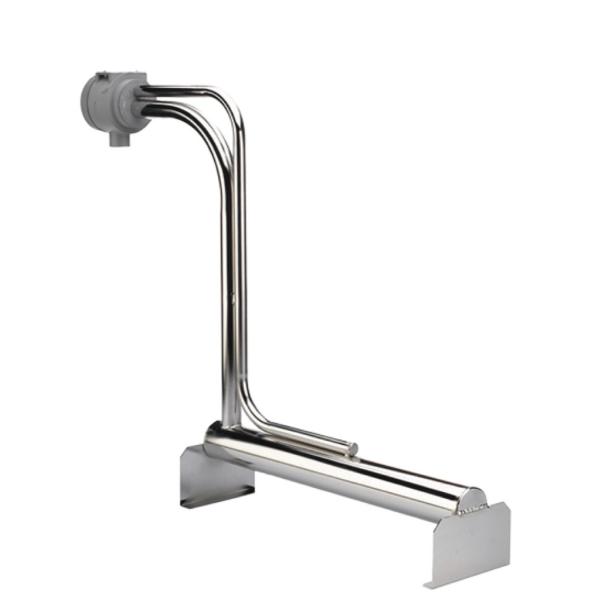

FEATURES
For use in most aqueous alkaline solutions, plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.
Heavy wall metal sheaths available in: steel, 304 stainlesss steel, 316 stainless steel, titanium.
Watt densities up to 18 watts per square inch (2.7 w/cm2) ensure long service life.
Vapor-resistant, flame retardant polypropylene termimal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
Temperature and level controls sized to match the heater. Lower watt densities for highly viscous solutions.
| | | | | 304 SS 316 SS | Titanium | |
| WATTS | VOLTS | Hot zone MM/IN. | RISER MM/IN. | Model No. | Model No. | Ship Wt. LBS./(Kg) |
| 500 | 120 240 | 330(13) | 380(15) | DLSP.5113 DLSP.5213 | DLTP.5113 DLTP.5213 | 10 (4.5) |
| 1000 | 120 240 480 | 430(17) | 485(19) | DLSP1117 DLSP1217 DLSP1417 | DLTP1117 DLTP1217 DLTP1417 | 11 (5) |
| 1500 | 240 480 | 560(22) | 635(25) | DLSP1.5222 DLSP1.5422 | DLTP1.5222 DLTP1.5422 | 12 (5.5) |
| 2000 | 240 480 | 660(26) | 635(25) | DLSP2226 DLSP2426 | DLTP2226 DLTP2426 | 13 (6) |
| 2500 | 240 480 | 790(31) | 940(37) | DLSP2.5231 DLSP2.5431 | DLTP2.5231 DLTP2.5431 | 14 (6.5) |
| 3000 | 240 480 | 915(36) | 1270(50) | DLSP3236 DLSP3436 | DLTP3236 DLTP3436 | 15 (7) |
| 4000 | 240 480 | 1120(44) | 1270(50) | DLSP4244 DLSP4444 | DLTP4244 DLTP4444 | 18 (8) |
| 4500 | 240 480 | 1270(50) | 1270(50) | DLSP4.5250 DLSP4.5450 | DLTP4.5250 DLTP4.5450 | 20 (9) |
| 5000 | 240 480 | 1400(55) | 1270(50) | DLSP5255 DLSP5455 | DLTP5255 DLTP5455 | 22 (10) |
| 6000 | 240 480 | 1625(64) | 1270(50) | DLSP6264 DLSP6464 | DLTP6264 DLTP6464 | 25 (11.5) |
Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
Certification: CSA,UL
SPECIFICATIONS
500 - 6000 watts 120 to 600 volts
OPTIONS AVAILABLE (CONSULT FACTORY)
Resettable thermal protectors Lower watt densities for highly viscous solutions. Custom configurations and lengths Custom wire and conduit lengths
